75 mm to 300mm
As per IS : 2062-92 Grade 'A'

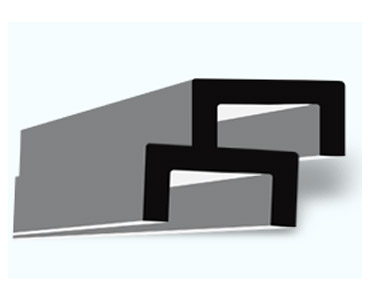

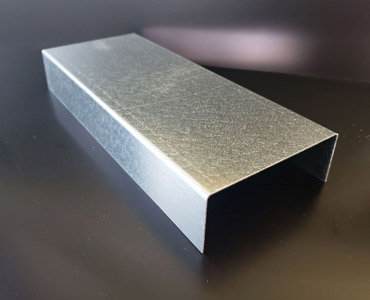

Channels
Jain's Channel
Special Feature
- Low temperature rolling imparts higher strength to the structures.
- Pilling and automatic tying of the structurally ensure minimum damage during handling and transport.
- Invoicing : As per actual weight.
Item |
Size(mm) |
Sec.Wt. |
Sec.
Area,a |
D |
B |
T |
T |
kg/m |
kg/m |
mm |
mm |
mm |
mm |
||
ISMC ISMC UNP UNP ISMC ISMC ISMC ISMC ISMC ISMC ISMC ISMC ISMC ISMC |
75x40 100x50 100x50 120x55 125x65 150x75 175x75 180x70 200x75 200x75 250x80 250x82 300x90 300x100 |
7.14 9.56 10.60 13.40 13.10 16.80 19.60 22.00 22.30 25.30 30.60 34.20 36.30 46.20 |
9.10 12.2 13.50 17.00 16.70 21.30 24.90 28.00 28.50 32.30 39.00 43.50 46.30 58.80 |
75 100 100 120 125 150 175 180 200 200 250 250 300 300 |
40 50 50 55 65 75 75 70 75 75 80 82 90 100 |
4.8 5.0 6.0 7.0 5.3 5.7 6.0 8.0 6.2 8.5 7.2 9.0 7.8 10.0 |
7.5 7.7 8.5 9.0 8.2 9.0 10.2 11.0 11.4 11.4 14.1 14.1 13.6 16.0 |
